Product Introduction

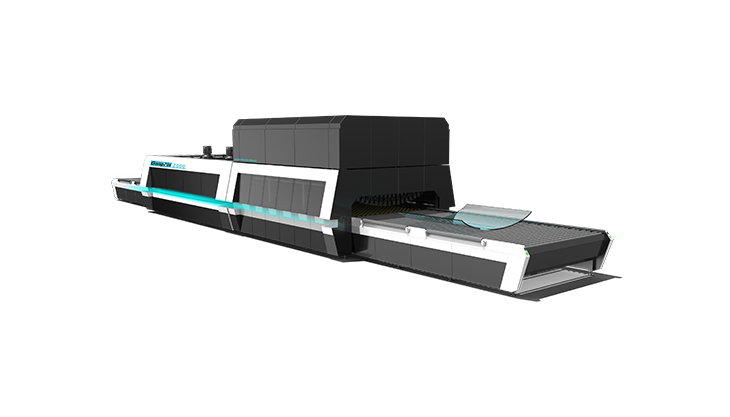

The Product GX-R Cross Bending & Tempering Furnace is a specialized soft-bending solution engineered specifically for large-format architectural glass. If you are producing panels for modern skyscrapers, curtain walls, or complex façade systems, this furnace is designed for you.
Unlike standard machines, it utilizes advanced soft-axis bending (cross bending) combined with forced convection heating. This allows you to produce high-height, curved tempered panels with exceptional optical quality and precise curvature that meet the most demanding engineering specifications.
Applications
The Product GX-R Cross Bending & Tempering Furnace is the go-to solution for manufacturers supplying the construction and automotive sectors. Typical applications include:
· Curtain Wall Panels: High-strength curved glass for modern building envelopes.
· High-Rise Façades: Safety glass that meets strict wind-load and thermal stress requirements.
· Specialty Architectural Projects: Custom-bent panels for lobbies, canopies, and structural glazing.
Technical Characteristics
The Product GX-R Cross Bending & Tempering Furnace is defined by its ability to deliver "intelligent, fool-style operation." Key technical highlights include:
· Processing Range: Customizable sizes for large-format architectural panels.
· Heating Method: Advanced forced convection for high-thickness glass.
· Automation: Fully automated parameter saving and high-security protocols.
· Quality Standards: Fully compliant with CE, UL, and ISO9001:2015 standards.
Key Features
Investing in the Product GX-R Cross Bending & Tempering Furnace provides you with a suite of technological advantages designed to boost your production efficiency:
· Soft-Axis (Cross) Bending Technology: Achieves controlled longitudinal and transverse bending, perfect for high-rise architectural designs.
· Advanced Forced Convection: Ensures uniform heating across the entire glass surface, which is critical for minimizing thermal distortion on large panels.
· High-Pressure Quench System: Rapidly cools the glass to stabilize curvature while providing superior surface strength and safety compliance.
· Intelligent PLC Control: You can precisely regulate temperature, quenching intensity, and conveyor speed via an intuitive Siemens interface.
· Energy Efficiency: Our optimized electrical components and mechanical design reduce power consumption while maintaining high-volume output.
· Versatile Processing: Easily handle Single, Double, and Triple Silver Low-E glass with consistent results and minimal "roll wave" or "bow" distortion.
Technical Parameters
Structure Introduction

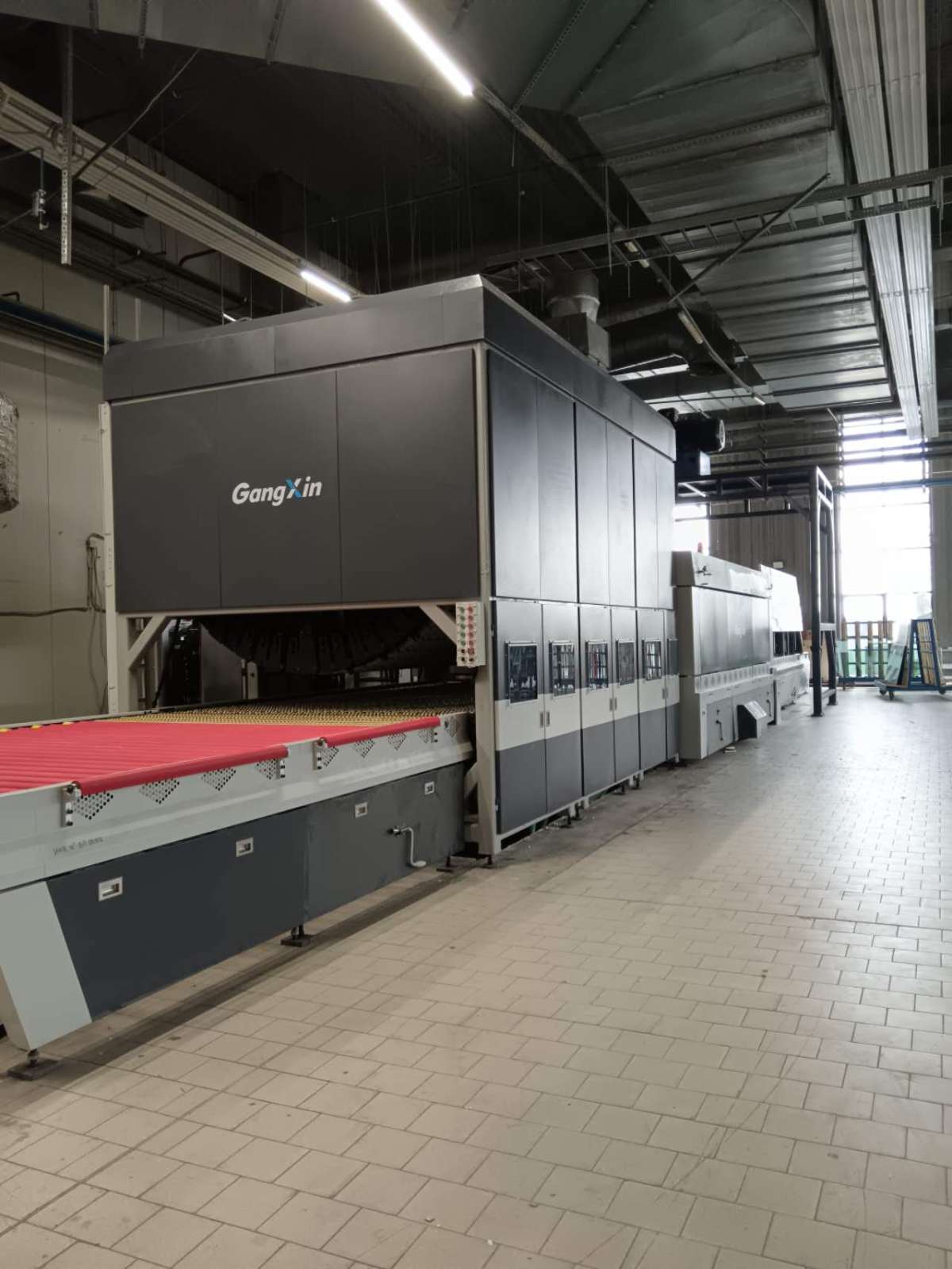

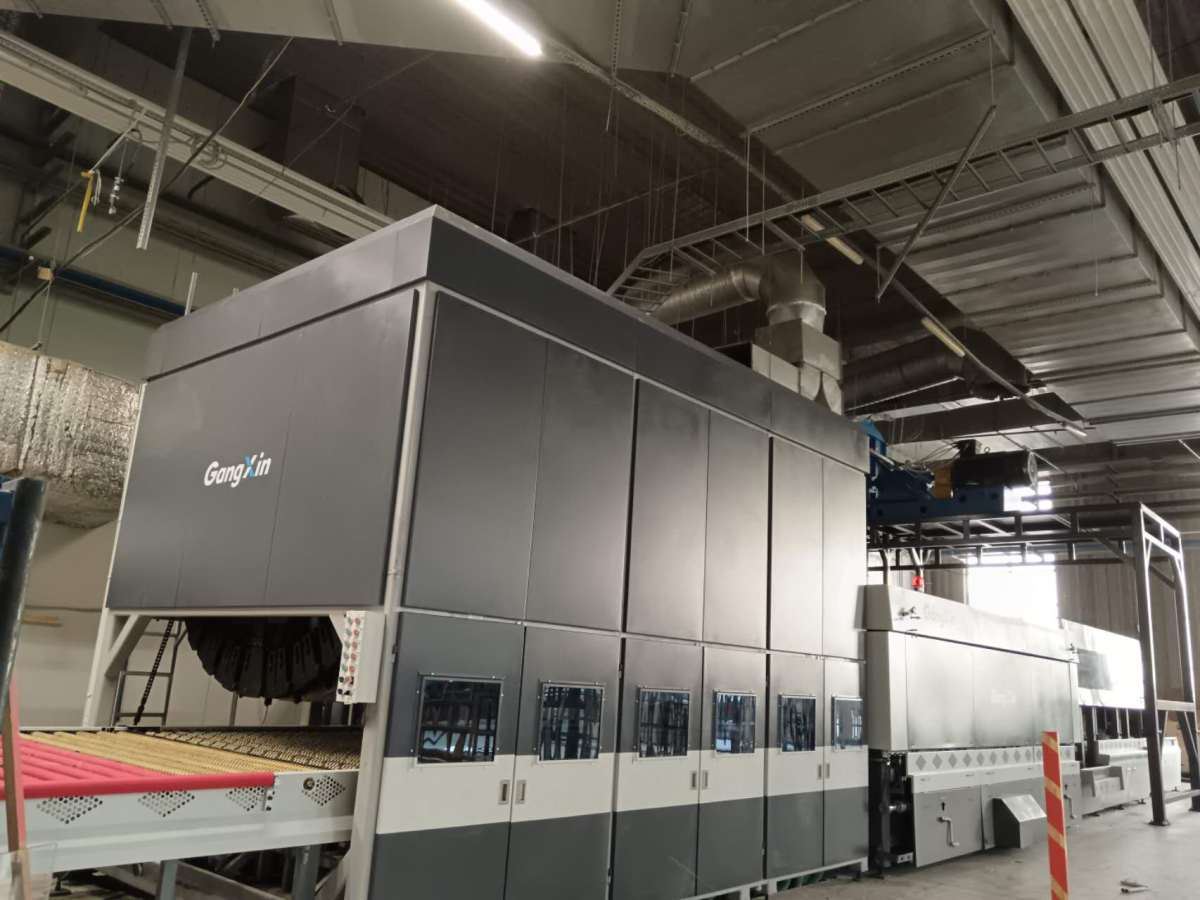

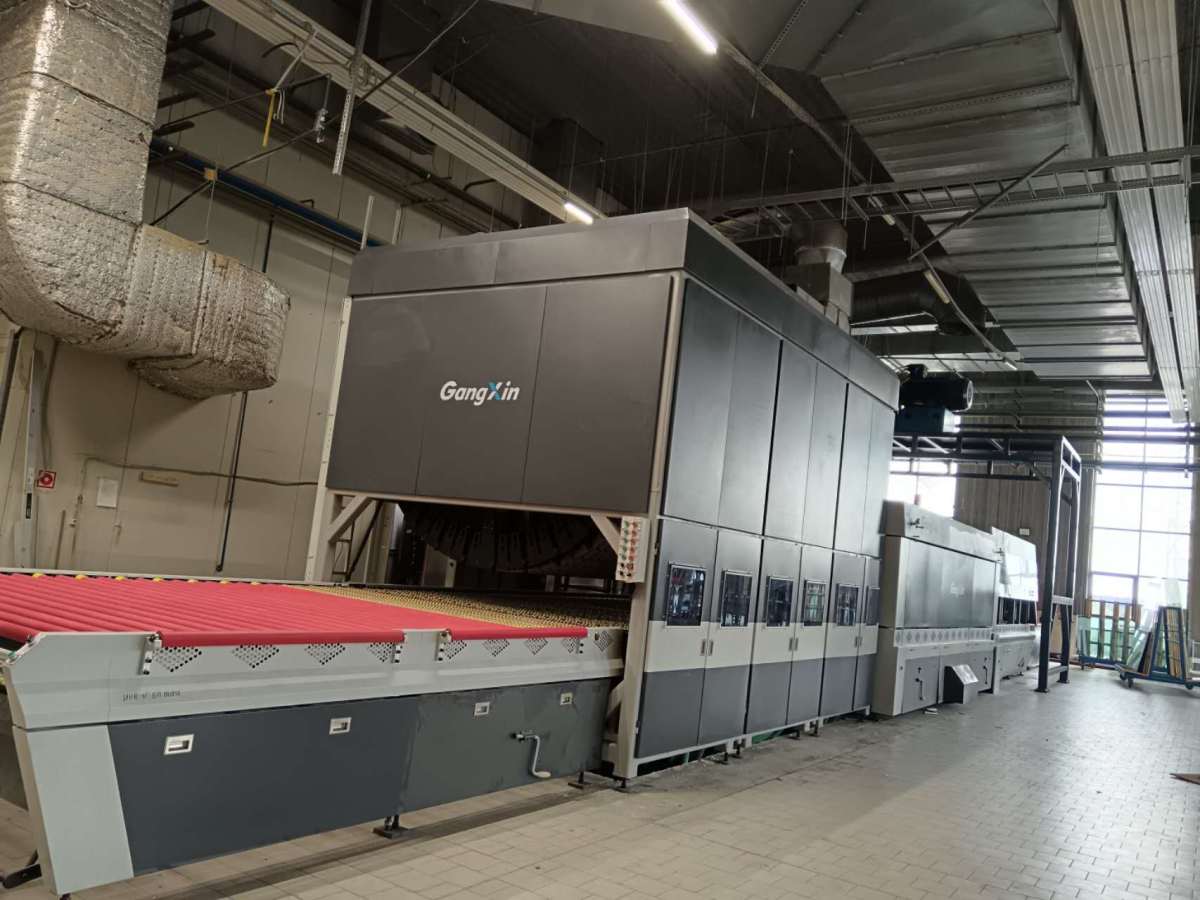

The structural integrity of the Product GX-R Cross Bending & Tempering Furnace is what sets it apart in an industrial setting. Every component is built for longevity:
· Quenching Section: Features integrated bending forming with no welding points for a more stable structure. The small air boxes are removable for fast, convenient cleaning.
· Advanced Lifting Mechanism: Both the top and bottom quenching sections can be adjusted independently, allowing you to fine-tune glass flatness with incredible precision.
· Chain Driving System: Ensures perfect synchronism during the bending process, preventing glass slippage or misalignment.
· Reliable Operating System: Equipped with a Siemens industrial computer and an integrated cantilever operating table located near the loading area for real-time monitoring.
· Error Warning System: Includes a complete monitoring function for all sensors, providing automatic parameter saving and early warning alarms to prevent downtime.
Working Principle
The working principle of the Product GX-R Cross Bending & Tempering Furnace follows a precision-controlled cycle. First, the glass is heated in the forced convection chamber to its softening point.
Once the optimal temperature is reached, it moves into the cross-bending section where the soft-axis rollers create the required curvature.
Finally, the glass enters the high-pressure quench, where high-velocity air "freezes" the glass into its tempered state, ensuring it meets all international safety standards for structural glass.
Why Choose Us?
Choosing Luoyang GangXin means choosing 19 years of focused research and development. We are not just a vendor; we are an integrated manufacturer. This means you get factory-direct pricing without middleman markups.
· Global Reach: We have exported to over 50 countries, understanding the logistics and technical needs of international markets.
· Unmatched Support: We offer one-on-one consultation, 48-hour on-site service, and lifetime technical support.
· Fast Response: We respond to your needs within 24 hours, ensuring your production line stays active.
Certifications
Luoyang GangXin Glass Technology Co.,Ltd maintains rigorous quality standards verified by international certifications:
· CE Certification: Confirms our equipment meets European Union safety, health, and environmental protection standards
· UL Certification: Validates safety standards for equipment used in North American markets
· ISO9001:2015: Demonstrates our quality management system meets international standards for consistent product quality and customer satisfaction
These certifications provide you with confidence that your investment in the Product GX-R Cross Bending & Tempering Furnace meets global quality and safety requirements.
FAQ
Q: Can this furnace handle Triple Silver Low-E glass?
A: Yes, the advanced forced convection system is specifically designed to process high-performance Low-E glass without damaging the coating.
Q: What is the response time for technical support?
A: We provide a 24-hour service hotline and guarantee a 48-hour on-site response for critical technical issues.
Q: Is the equipment customizable?
A: Absolutely. As a manufacturer, we provide ODM/OEM services to tailor the furnace size and quenching parameters to your specific project needs.
