Product Description

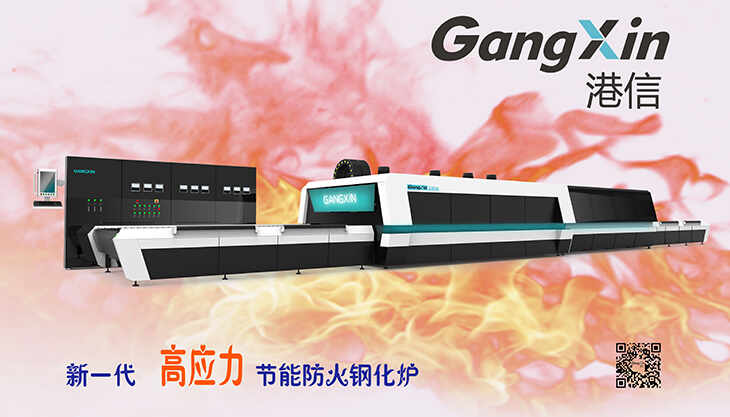

Product Line 10 Fire-Resistant Glass Tempering Furnace

Applies To: GB 15763.1-2009

Safety glazing materials in building Part 1:Fire-resistant glass

Gangxin Fire-resistant Glass Tempering Furnace:

By Structure: Laminated Fire-resistant Glass (FFB); Monolithic Fire-resistant Glass (DFB).

By Fire Resistance Performance: Insulated Fire-resistant Glass (A type); integrity-only fire-resistant glass (C type).

The product line delivers high-quality solutions across multiple dimensions, fully compliant with the requirements of various fire resistance grades specified by Chinese national standards.

Technical Parameters

ModelThickness(mm)Max Loading Area
MAX(mm)		  Min Glass Size
     MIN(mm)		Productivity
   +(m²/h)		Heating Power( K W )Power Supply Capacity(KVA)
GX-FH2436-TP 4-192440*3660100*300120602630
GX-FH2442-T 4-192440*4200100*300140691710
GX-FH2450-T 4-192440*5000100*300170823800
GX-FH2460-TP 4-192440*6000100*300200988900
GX-FH2842-TP 5-192850*4200350*350164748750
GX-FH2850-TP 5-192850*5000350*350195890865
GX-FH2860-TP 5-192850*6000350*35023510681000
GX-FH3050-TP 5-193000*5000350*3502101012940
GX-FH3060-TP 5-193000*6000400*40025212151100
GX-FH3580-TP 5-193500*8000400*40039218901565

Notes: Productivity is calculated based on 80%loading rate of 5mm clear glass in radiation furnace.
