Product Introduction

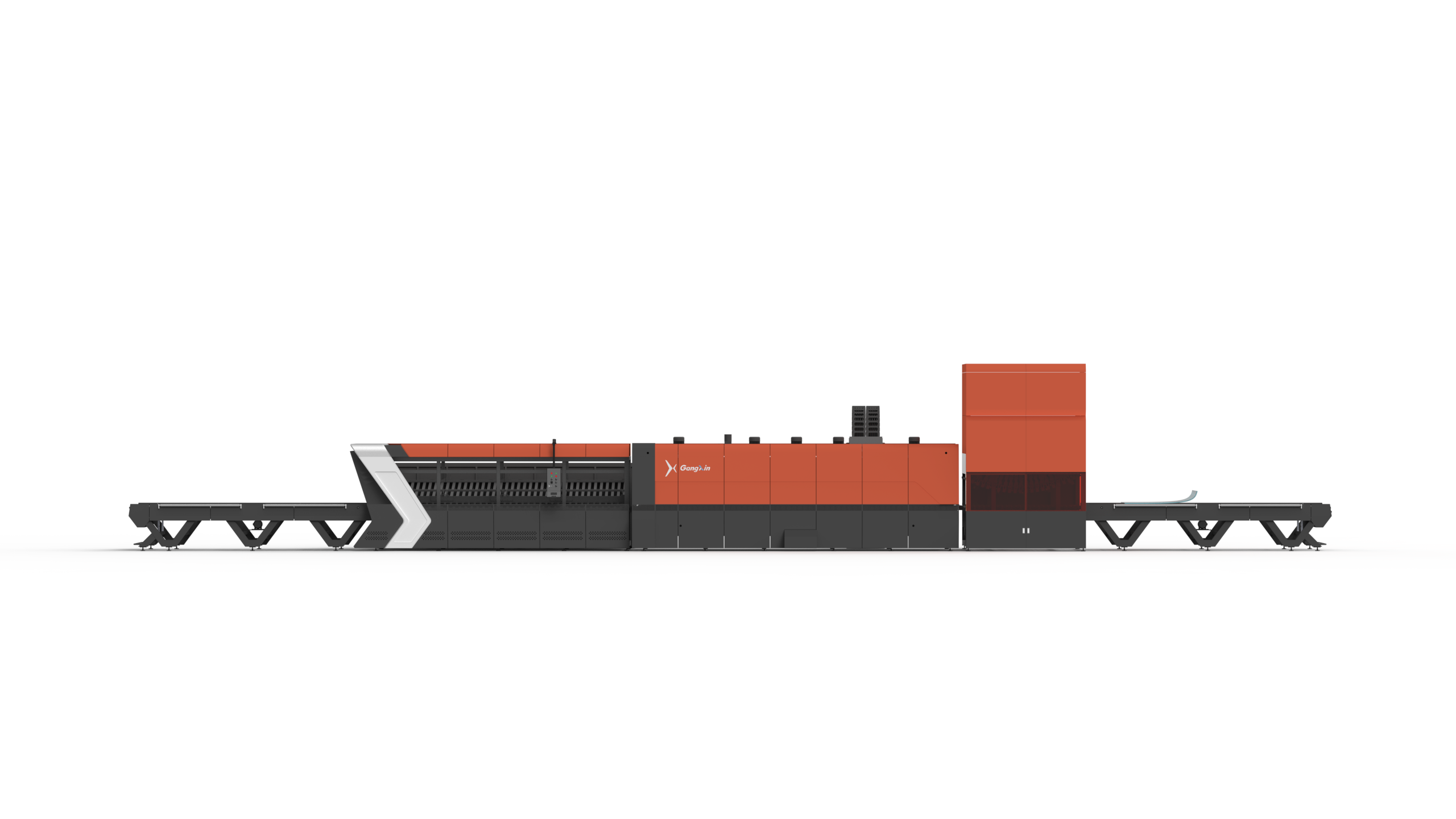

Processing complex glass shapes requires more than just heat; it requires absolute control over geometry and cooling. The Product GX-YJ Asymmetrical Bending & Tempering Furnace is a highly specialized system designed specifically for asymmetrical single-curve tempered glass. This means you can create panels where two different bending geometries—such as a curve transitioning into a straight edge—exist within the same glass plane.
Main Applications
Suitable for multi curvature bend tempering glass production, like side windows glass of buses and cars,shower glass etc.
Technical Specifications
Subsection arc-adjustment system, high goodness of fit and accuracy radius, reliable and stable control system,excellent product quality.
Features and Advantages
Asymmetrical Single-Curve Bending Excellence: Craft non-symmetrical single-curved glass in one plane, supporting profiles like curve-to-straight transitions or multi-radius combinations. This is ideal for your custom special-shape designs in architecture or transportation, giving you flexibility without extra hassle.
Precision Shape Control: Our controlled bending system ensures smooth transitions between sections, maintaining dimensional accuracy and stable geometry post-tempering. You get consistent results every time, crucial for meeting engineering specs in automotive or structural glass.
Advanced Forced Convection Heating: Enjoy uniform heating across irregular shapes to avoid stress spots—perfect for thin to medium glass used in displays or vehicles. It processes Low-E coated glass seamlessly, boosting your efficiency and product versatility.
High-Pressure Quench System:Rapid, even quenching locks in asymmetrical shapes while delivering high surface strength and safety. Say goodbye to worries about breakage; this meets international standards for your safety-focused applications.
Smart PLC Control System: With intuitive adjustments for temperature, bending, and quench intensity, it's repeatable for small-batch or custom runs. The simple, user-friendly interface means less training time for your team, and real-time monitoring keeps everything running smoothly.
Technical Parameters
Structure Introduction
Diving into the build of our Product Line 08 GX-YJ Asymmetrical Bending & Tempering Furnace, you'll find thoughtful designs that prioritize ease and reliability for your daily use.
·Quenching Section: This core area tempers your softened glass using high-pressure winds for uniform cooling, creating that essential surface compression and inner tension you need for strong, safe glass. It's adjustable for optimal flatness control.
·Air Outlet System: Features single bellows integrated into the bending formation—no welding points for a stable, durable structure. Small, removable air boxes allow quick cleaning, while aluminum-perforated profiles prevent deformation. With six arrangement options and separate dampers per box, you get precise airflow tailored to asymmetrical shapes.
·Lifting Mechanism: Independently adjustable top and bottom quenching sections let you fine-tune height easily, ensuring perfect flatness for various glass thicknesses. The chain-driven system offers better synchronism, and cold-plate bent air boxes form in one piece for longevity.
·Intelligent Operating System: Includes an operating floor with automatic parameter saving for high security. Visual data and real-time machine state detection keep you informed. Our independent system supports multi-language selection and real-time technical help from us—operate confidently from anywhere.
·Siemens Industrial Computer: First-line brand for smooth, clear screen displays. The integrated cantilever table sits near the loading area for instant glass entry monitoring, reducing errors. Plus, error warnings, full sensor monitoring, and auto-saving/upgrading features make it foolproof.
This robust structure ensures your furnace runs stably, with efficient electrical designs and simple mechanics that align with your need for precise cooling rates in industrial settings.
Working Principle
Our Product GX-YJ Asymmetrical Bending & Tempering Furnace actually works its magic. It's all about a smart sequence: First, glass enters the heating chamber where forced convection evenly raises it to softening temperature, preparing it for bending without hot spots.
Then, the asymmetrical bending molds gently shape it into your desired curve-straight or multi-radius profile. Finally, the high-pressure quench blasts cool air rapidly and uniformly, creating compressive stress on the surface for enhanced strength.
This process, controlled by PLC, ensures safety and optical quality, turning ordinary glass into durable, break-resistant pieces in under an hour—perfect for your high-volume needs.
Application
Tailored for your world of glass processing, the Product GX-YJ Asymmetrical Bending & Tempering Furnace shines in creating asymmetrical curved tempered glass for key uses.
Think fresh food display cabinets, bakery showcases, bus and coach side windows, or architectural facades with right-angle corners and transitions. It's a boon for building suppliers needing high-strength panels for windows and structures, or industrial makers crafting protective barriers.
Even technical traders importing for regional markets will value its versatility in producing safe, aesthetically pleasing glass that meets global engineering norms—boosting your output in automotive and commercial sectors.
Why Choose Us
Since 2007, Luoyang GangXin Glass Technology Co.,Ltd has dedicated nearly 20 years to glass tempering furnaces, serving international markets with R&D, design, and manufacturing expertise.
Our 22,000㎡ factory and 150+ employees, including 60+ specialists, uphold "honesty as foundation, innovation as soul." We control supply chains for stable, high-quality parts, offer one-on-one consultations, 24/7 support, lifetime tech help, and 48-hour on-site service.
Exporting to 50+ countries, we provide custom ODM/OEM, quick 24-hour responses, and efficient FOB shipping from nearby Qingdao Port. Choose us for factory-direct pricing, 30% R&D investment, and proven reliability—no middlemen, just excellence for your needs.
Partners and Projects
We've partnered with global leaders in architecture and automotive, delivering furnaces for projects like high-rise facades in Asia and bus manufacturing in Europe. Our equipment powers efficient production in over 50 countries, from custom displays to structural glass installs.
Certification
Proudly holding CE certification for safety, UL for electrical standards, and ISO9001:2015 for quality management—ensuring your furnace meets international benchmarks.
FAQ
Q: How long is the production cycle?
A: As a custom large-scale machine, it varies by specs, but we respond to inquiries in 24 hours and deliver tailored solutions swiftly.
Q: Can you customize for my country's standards?
A: Absolutely—our ODM/OEM expertise handles regional needs seamlessly.
Q: What's the energy efficiency like?
A: Designed for savings, with uniform heating that cuts consumption while processing Low-E glass effectively.
