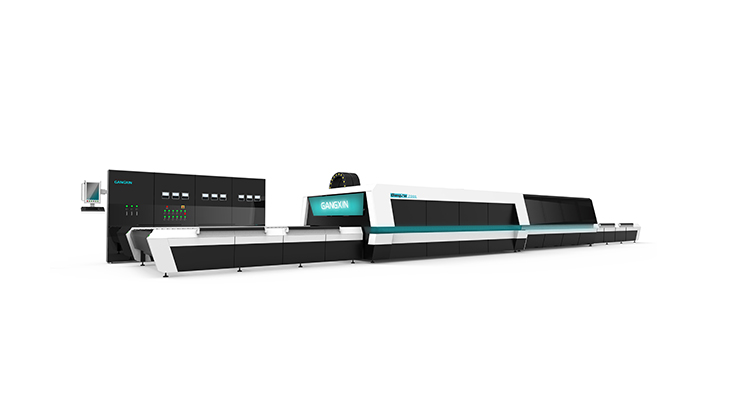

GX-T Passing Through (Forced Convection) Flat Glass Tempering Furnace

Suitable for advanced domestic appliance, decoration glass, automotive glass, trains&ships glass, industrial instrument, lighting glass etc.



export01@lygangxinglass.com

Send Email

Get A Quote

Product Description

Product Introduction

When you buy a tempering furnace, you’re not only buying heat—you’re buying repeatability across shifts.The GX-T Passing Through (Forced Convection) Flat Glass Tempering Furnace is designed to help you keep heating uniform, quenching stable, and output predictable for architectural, furniture, appliance, and decorative glass.

If your product mix includes coated glass, this matters even more. A forced convection glass tempering furnace helps reduce the “top/bottom heat mismatch” that often shows up as optical defects on Low-E glass.

Key Benefits

· Better flatness, cleaner imaging: Balanced heating + stable roller movement helps you control roller wave and visual distortion for facade and appliance panels.

· Lighter wind marks: Airflow design aims to keep quench impact more even, so you see fewer obvious patterns on reflective surfaces.

· Low-E ready (single/double/triple silver): Designed around the reality that coated sides absorb heat differently, so you can tune recipes with less trial-and-error.

· Energy-aware design: Efficient electrical component selection and airflow organization help reduce unnecessary consumption while maintaining output.

· Operator-friendly control: Recipe-style settings and clear operation logic reduce dependence on “one skilled operator.”

· Stable for industrial rhythm: The “passing-through” workflow supports line integration (loading, unloading, downstream handling) and steady time.

Technical Parameters

Model	Thickness(mm)	Max Loading Area MAX(mm)	Min Glass Size MIN(mm)	Productivity (m²/h)	Heating Power ( K W )	Power Supply Capacity(KVA)
GX-G-1842-TP	3.5/4-19	1800*4200	100*300	96	529	463
GX-G-2036-TP	3.5/4-19	2000*3660	100*300	93	512	452
GX-G-2042-TP	4-19	2000*4200	100*300	107	588	525
GX-G-2436-TP	4-19	2440*3660	100*300	114	625	550
GX-G-2442-TP	5-19	2440*4200	100*300	131	717	630
GX-G-2450-TP	5-19	2440*5000	100*300	156	854	740
GX-G-2460-TP	5-19	2440*6000	100*300	187	1024	895
GX-G-2842-TP	5-19	2850*4200	350*350	153	837	730
GX-G-2850-TP	5-19	2850*5000	350*350	182	997	875
GX-G-2860-TP	5-19	2850*6000	350*350	218	1197	1035
GX-G-3050-TP	5-19	3000*5000	400*400	192	1050	956
GX-G-3060-TP	5-19	3000*6000	400*400	230	1260	1135

Notes: Productivity is calculated based on 80% loading rate of 5mm clear glass in radiation furnace.

Structure Introduction

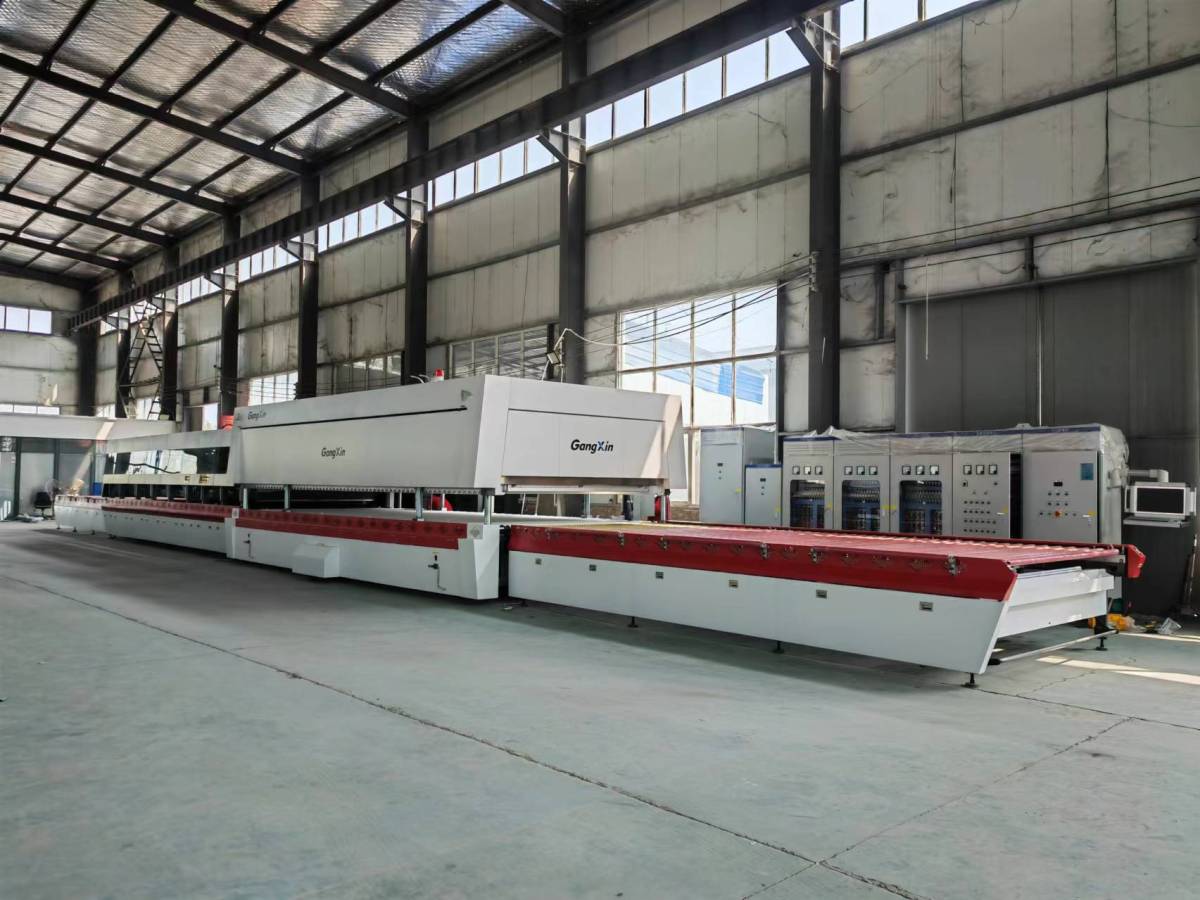

· Loading & alignment section: Smooth entry and stable positioning help reduce edge hits and micro-chips before heating.

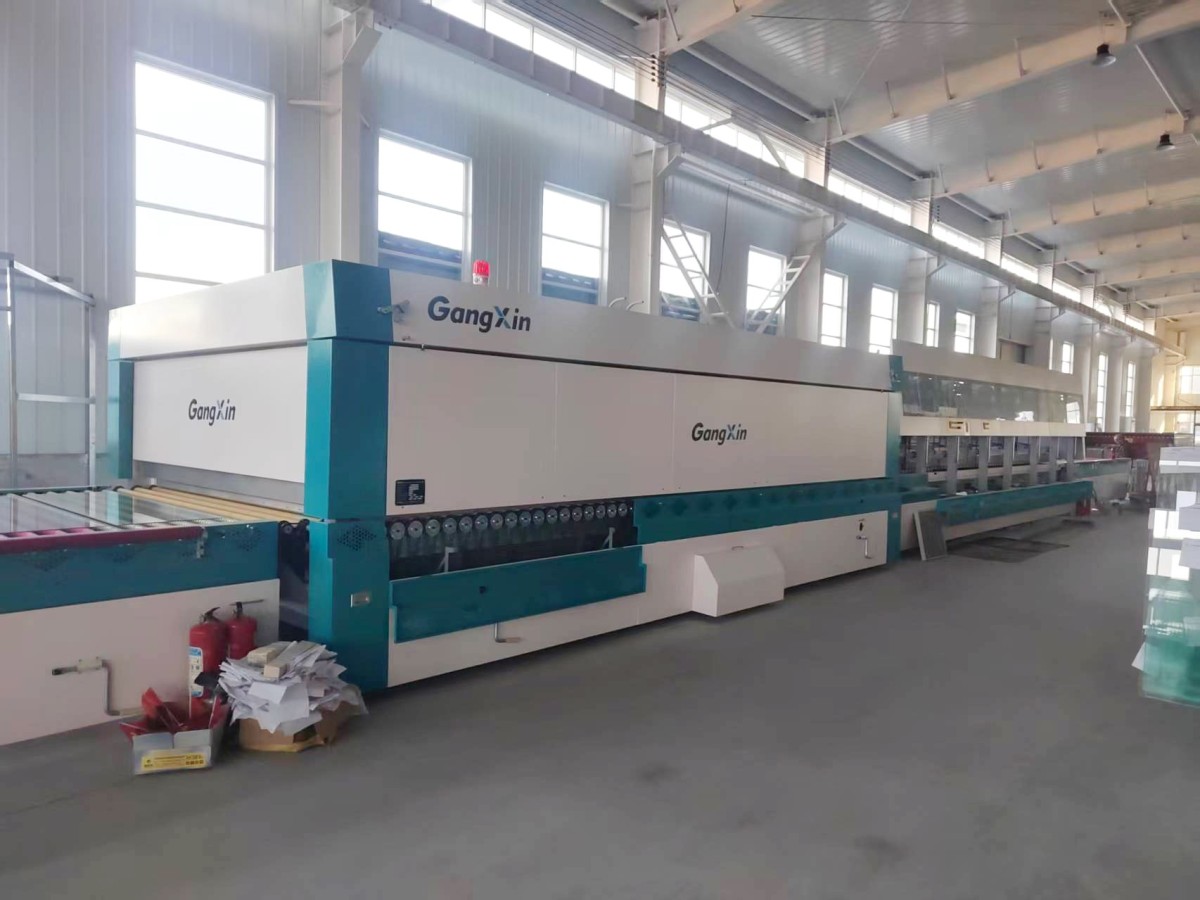

· Heating chamber (radiation + convection): Convection circulation improves temperature uniformity across the sheet.

· Passing-through transfer: Designed for continuous production rhythm and easier automation docking.

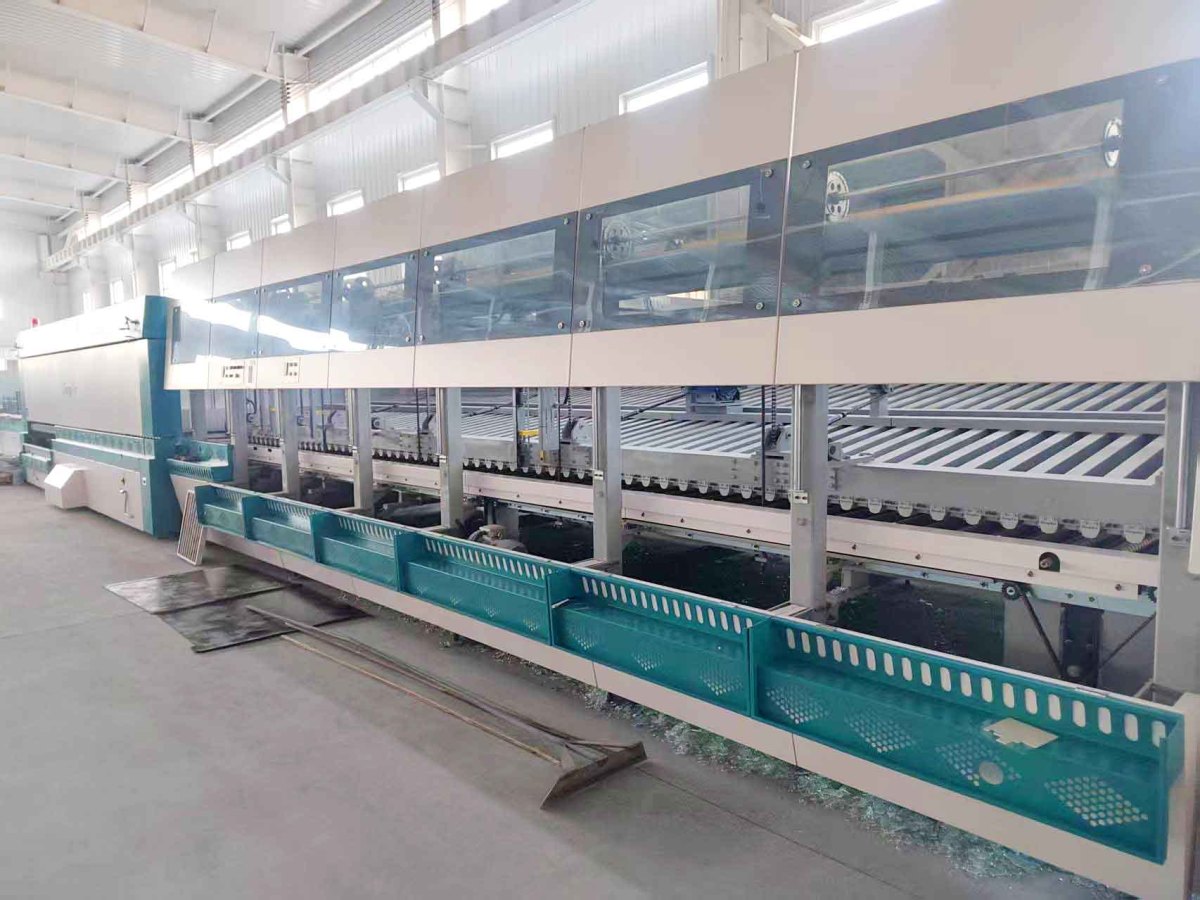

· Quench section (high-pressure air): Builds surface compression fast and evenly to achieve safety-glass performance.

· Blower & air duct system: Stable pressure and balanced nozzle layout support consistent quenching across different sheet sizes.

· Electrical & control cabinet: Industrial-grade components chosen for long-running stability and easier maintenance.

Working Principle

Glass is heated close to its tempering range, then moved immediately into high-pressure air quenching. The surfaces cool first and lock into compressive stress, while the core cools later and stays in tension—this stress profile is what makes tempered glass stronger and safer.In day-to-day production, your quality is mainly decided by three knobs: heating uniformity, transfer timing, and quench balance.

Why Choose Us

With the GX-G-TP Passing Through (Forced Convection) Flat Glass Tempering Furnace, you benefit from Luoyang GangXin’s long-term focus on glass tempering technology. We insist on “honesty as the foundation, innovation as the soul” in every project.

You can expect:

· One-to-one professional consultation and application design.

· Guidance for installation, commissioning and operator training on site.

· 24-hour after-sales hotline, lifetime technical support and 48-hour on-site service response when needed.

· ODM / OEM capability to match your local standards, layout and production targets.

· Convenient logistics: export mainly via Qingdao Port, close to our Luoyang factory for fast shipment.

Our references cover more than 50 countries and regions, from building glass processors to automotive and industrial glass manufacturers.

Certifications & Quality System

We follow ISO9001:2015 quality management practices and can support deliveries requiring CE and UL compliance documentation (project-dependent).

For international projects, we also support ODM/OEM configuration work so the machine fits local power standards, plant layout, and operator habits.

FAQ

1) Can you process Low-E coated glass reliably?
Yes—forced convection is specifically used to improve heating uniformity when the two glass surfaces absorb heat differently, which is common with Low-E coatings.

2) What glass thickness can be produced?
Depending on model, typical ranges include 4–19 mm (and larger formats for thicker ranges on specific models).

3) Is it customizable for my country’s power and factory layout?
Yes. These furnaces are large industrial systems, commonly delivered as customized configurations (layout, loading/unloading, airflow strategy, power matching, spare parts plan).
